Custom tools extend your chatbot’s capabilities by connecting it to your own APIs. Unlike built-in integrations, custom tools give you complete flexibility to integrate with any system—your CRM, inventory, pricing engine, or any external service.

What Are Custom Tools?

A custom tool is a function that your chatbot can call to perform actions or retrieve data. You define:
  1. What it does (description for the AI)
  2. What parameters it needs (argument schema)
  3. Where to send requests (your API endpoint)
  4. How to authenticate (API key, Bearer token, or HMAC)
When a customer asks something relevant, the AI automatically calls your tool and uses the response.

Common Use Cases

Order Status

Check order status from your backend

Inventory Check

Real-time product availability

Customer Lookup

Retrieve customer info from CRM

Price Calculator

Custom pricing based on quantity/customer type

Step-by-Step Guide: Building a Weather Tool

In this guide, we’ll build a Weather Checker tool that allows your chatbot to answer questions about the weather in any city. We’ll use the free OpenWeatherMap API.

Prerequisites

  1. Sign up at OpenWeatherMap to get a free API key.
1

Navigate to Custom Tools

Go to DashboardIntegrationsCustom ToolsCreate Tool
2

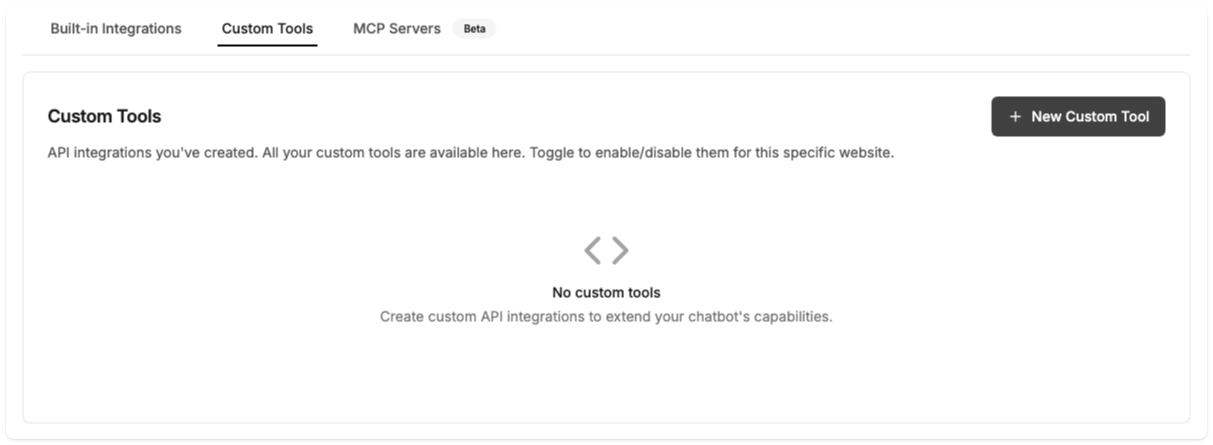

Custom Tools Overview
3

Configure Tool Details

Fill in the following fields:Tool Name: get_weather
  • Must be unique, lowercase, and use underscores.
Display Name: Weather Checker
  • A human-readable name for your internal dashboard.
Description for AI: “Get current weather information for a location. Use when customer asks about weather, temperature, or conditions in a specific city or location.”
  • Tip: Be specific about when the AI should use this tool.

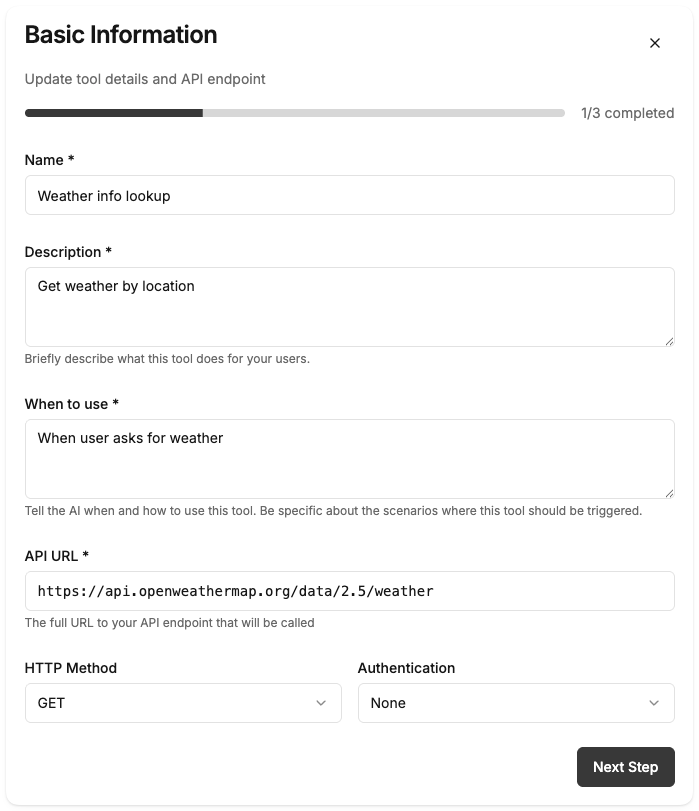

Step 1: Configure Tool Details
4

Define Argument Schema

The argument schema tells the AI what variables it needs to extract from the user’s message (like the city name).Paste this JSON schema:
{
  "q": {
    "type": "string",
    "description": "City name or location to search (e.g., 'New York', 'London', 'Tokyo')",
    "required": true
  },
  "appid": {
    "type": "string",
    "description": "OpenWeatherMap API key",
    "required": false,
    "default": "YOUR_OPENWEATHER_API_KEY"
  }
}
Replace YOUR_OPENWEATHER_API_KEY with the key you got from step 1.

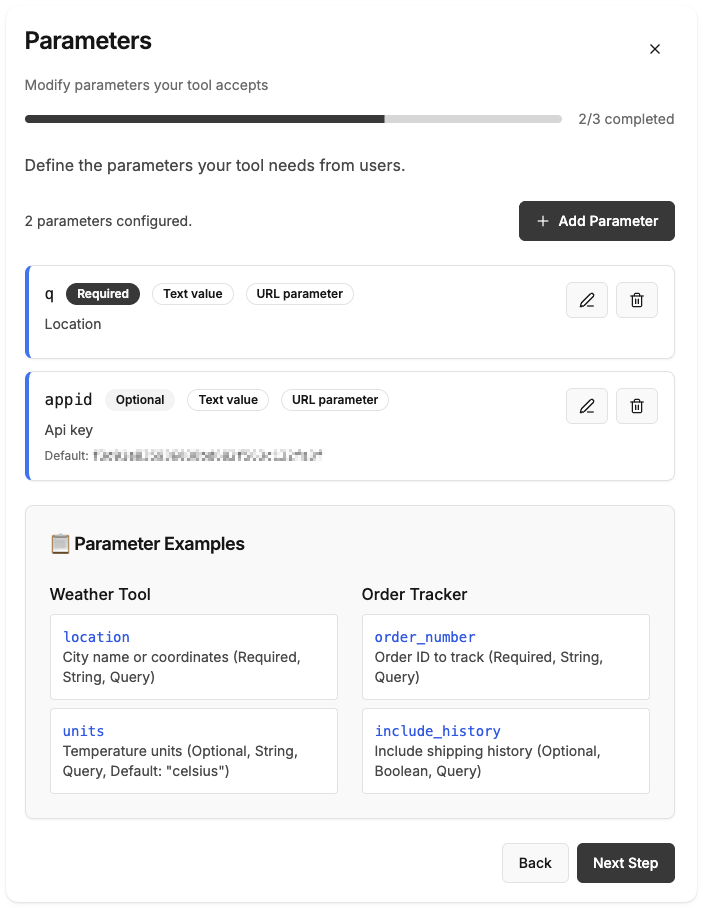

Step 2: Define Arguments
5

Config Parameters

Now map the schema arguments to the API endpoint’s parameters.
  1. City Parameter:
    • Name: q
    • Method: Query (URL parameter)
    • Source: q (from schema)
  2. API Key:
    • Name: appid
    • Method: Query
    • Source: appid (from schema)
  3. Units (Static Value):
    • You can literally type metric as a default value if your schema allows it, or just handle it in the URL if the API supports it. For this example, we’ll stick to the two dynamic parameters above.

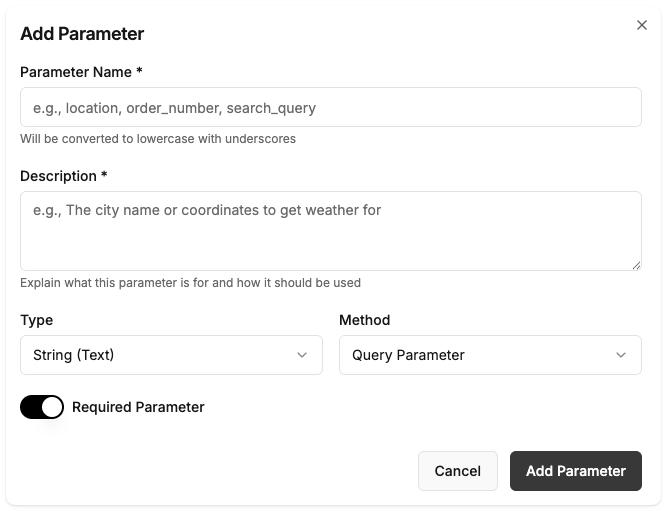

Step 2: Add Parameters
6

Set Endpoint URL

Enter the OpenWeatherMap API URL:https://api.openweathermap.org/data/2.5/weather
  • HTTP Method: GET

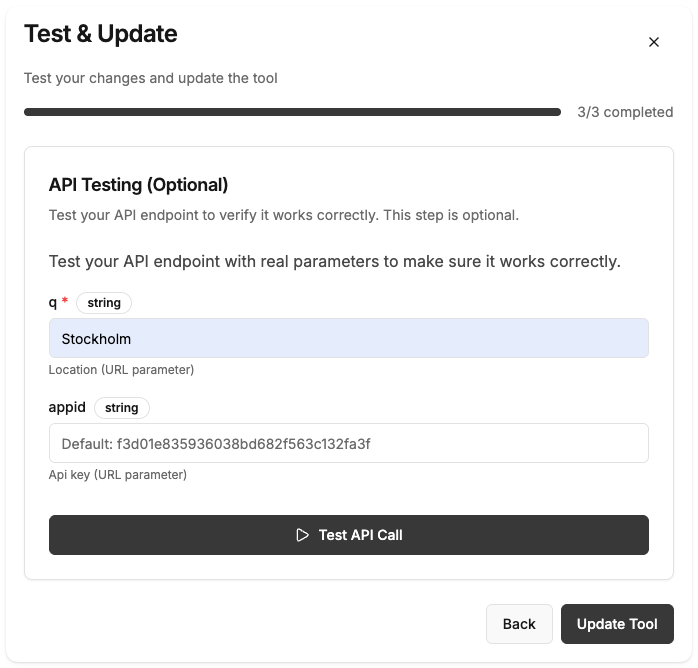

Step 3: Configure Endpoint
7

Configure Authentication

Since we are passing the API key as a query parameter (appid), choose None for the Authentication Method in this specific case.For your own secure APIs, checking Authentication Methods below is recommended.
8

Save and Test

  1. Click Create Tool.
  2. Click the Test button on your new tool.
  3. Enter London for the q parameter.
  4. Click Run Test.
You should see a successful response with temperature and weather data!

Authentication Methods

When you secure your custom tool, you share a secret key between BubblaV and your API.
  1. In Dashboard: You enter or auto-generate a Secret Key (e.g., my-secret-token-123).
  2. In Your Backend: You adhere to the environment variable BUBBLAV_SECRET_KEY with that exact same value.
  3. The Check: When BubblaV calls your API, your backend checks if the incoming request was signed/authorized with that same key.

None (No Authentication)

Simplest setup—no auth headers sent.
Only use for internal testing or truly public APIs. Anyone with your URL can call your endpoint.

Bearer Token

BubblaV sends your secret in the Authorization header:
POST /api/your-endpoint
Authorization: Bearer your-secret-key-here
Content-Type: application/json
In the examples below, process.env.BUBBLAV_SECRET_KEY represents the secret key you configured in the BubblaV Dashboard for this tool. You must add this key to your backend’s environment variables.
Validate in your API:
app.post('/api/order-status', (req, res) => {
  const authHeader = req.headers.authorization;

  if (!authHeader?.startsWith('Bearer ')) {
    return res.status(401).json({
      success: false,
      error: 'Missing authorization'
    });
  }

  const token = authHeader.split(' ')[1];
  if (token !== process.env.BUBBLAV_SECRET_KEY) {
    return res.status(401).json({
      success: false,
      error: 'Invalid token'
    });
  }

  // Process request...
});
Most secure option using cryptographic signatures. Prevents replay attacks and ensures request authenticity. Headers sent:
POST /api/your-endpoint
Content-Type: application/json
X-BubblaV-Signature: sha256=abc123def456...
X-BubblaV-Timestamp: 1703123456789
In these examples, process.env.SECRET refers to the HMAC Secret Key you generated in the dashboard. Ensure this environment variable matches the key in your tool configuration.
Validate in your API:
const crypto = require('crypto');

function verifySignature(body, signature, secret, timestamp) {
  const payload = `${timestamp}.${JSON.stringify(body)}`;
  const expected = crypto
    .createHmac('sha256', secret)
    .update(payload, 'utf8')
    .digest('hex');

  return crypto.timingSafeEqual(
    Buffer.from(signature, 'hex'),
    Buffer.from(expected, 'hex')
  );
}

app.post('/api/secure-endpoint', (req, res) => {
  const signature = req.headers['x-bubblav-signature']?.replace('sha256=', '');
  const timestamp = req.headers['x-bubblav-timestamp'];

  // Check timestamp (5 min tolerance)
  const now = Math.floor(Date.now() / 1000);
  if (now - parseInt(timestamp) / 1000 > 300) {
    return res.status(401).json({
      success: false,
      error: 'Request expired'
    });
  }

  if (!verifySignature(req.body, signature, process.env.SECRET, timestamp)) {
    return res.status(401).json({
      success: false,
      error: 'Invalid signature'
    });
  }

  // Process authenticated request...
});

Testing HMAC Signatures

Validating signatures can be tricky. Use our built-in debug tools to help: Dashboard Debug Info: In the Testing step of the Custom Tool Wizard, look for the Request Details (Debug Info) section. It shows you the exact Payload String we used to generate the signature. You can use this to debug your own verification code.

Key Requirements & Security

When generating or providing your own keys, follow these security best practices: General Requirements:
  • Length: Minimum 32 characters (longer is better)
  • Complexity: Use a mix of letters (upper/lowercase), numbers, and symbols
  • Entropy: Avoid common words, repeated characters (e.g., “aaaaa”), or sequential patterns (e.g., “123456”)
Specific Guidelines:
  • Bearer Tokens: Must be URL-safe (no spaces or special characters).
    • Example: A4B8C12D16F20G24H28I32J36K40L44M48
  • HMAC Secrets: Recommended minimum 64 characters for cryptographic security.
    • Example: abcd1234efgh5678ijkl9012mnop3456qrst7890uvwx...
Security Note: These keys are used to authenticate API requests. Store them securely and never share them publicly. If a key is compromised, regenerate it immediately.
Using Existing Keys: If you choose to use an existing API token or secret key, ensure it is properly configured on your endpoint to accept requests from BubblaV.

Request & Response Format

Request from BubblaV

Your endpoint receives POST requests with this JSON body:
{
  "tool_name": "get_order_status",
  "arguments": {
    "order_number": "ORD-12345",
    "include_items": true
  },
  "timestamp": 1703123456789,
  "user_id": "uuid-of-website-owner"
}

Response to BubblaV

Return JSON in this format:
{
  "success": true,
  "data": {
    "order_number": "ORD-12345",
    "status": "shipped",
    "tracking": "1Z999AA123456789",
    "estimated_delivery": "2024-01-15",
    "items": [
      { "name": "Blue T-Shirt", "quantity": 2 }
    ]
  },
  "message": "Order ORD-12345 has shipped and will arrive by January 15th."
}
The message field is what the AI will use to respond to the customer. Make it friendly and informative!


Here’s how to connect to a Discourse forum to search for topics.

1. Tool Configuration

FieldValue
Tool Nameforum_search
Display NameCommunity Forum Search
DescriptionSearch the community forum for topics. Use when answering technical questions or looking for community solutions.
Endpoint URLhttps://community.yourdomain.com/search.json
Auth MethodNone (Public API)

2. Argument Schema

{
  "q": {
    "type": "string",
    "description": "The search query to find relevant topics",
    "required": true
  }
}

3. Parameters

  • q: Add as a query parameter (Method: query)

4. Advanced: Two-Step Workflow

For better results, often you want to search first, then fetch the full topic details.
  1. Create forum_search tool: Returns a list of topics.
  2. Create forum_topic_detail tool:
    • URL: https://community.yourdomain.com/t/{topic_id}.json?print=true
    • Params: topic_id (Path parameter)
AI Instructions: “First use forum_search to find relevant topics. Then use forum_topic_detail with the best matching topic ID to get the full answer.”

In Dashboard

  1. Go to IntegrationsCustom Tools
  2. Find your tool and click Test
  3. Enter sample arguments
  4. Click Run Test
  5. Verify the response looks correct

Live Testing

  1. Open your website with the chatbot
  2. Ask questions that should trigger your tool:
    • “What’s the weather in New York?”
    • “How’s the weather in London?”
    • “Check weather for Tokyo”

Troubleshooting

  • Make your Description for AI more specific
  • Include trigger words customers use
  • Verify tool is marked as Active
  • Verify secret key is correct
  • Check endpoint receives expected headers
  • For HMAC, verify timestamp and signature calculation
  • Ensure endpoint responds within 10 seconds
  • Optimize database queries
  • Check network connectivity
  • Return valid JSON with success, data, message fields
  • Check for syntax errors in JSON
  • Test endpoint with curl or Postman first

Best Practices

Single Purpose

Each tool should do one thing well

Clear Descriptions

Help AI understand when to use each tool

Fast Responses

Aim for sub-second response times

Helpful Messages

Return user-friendly message text
